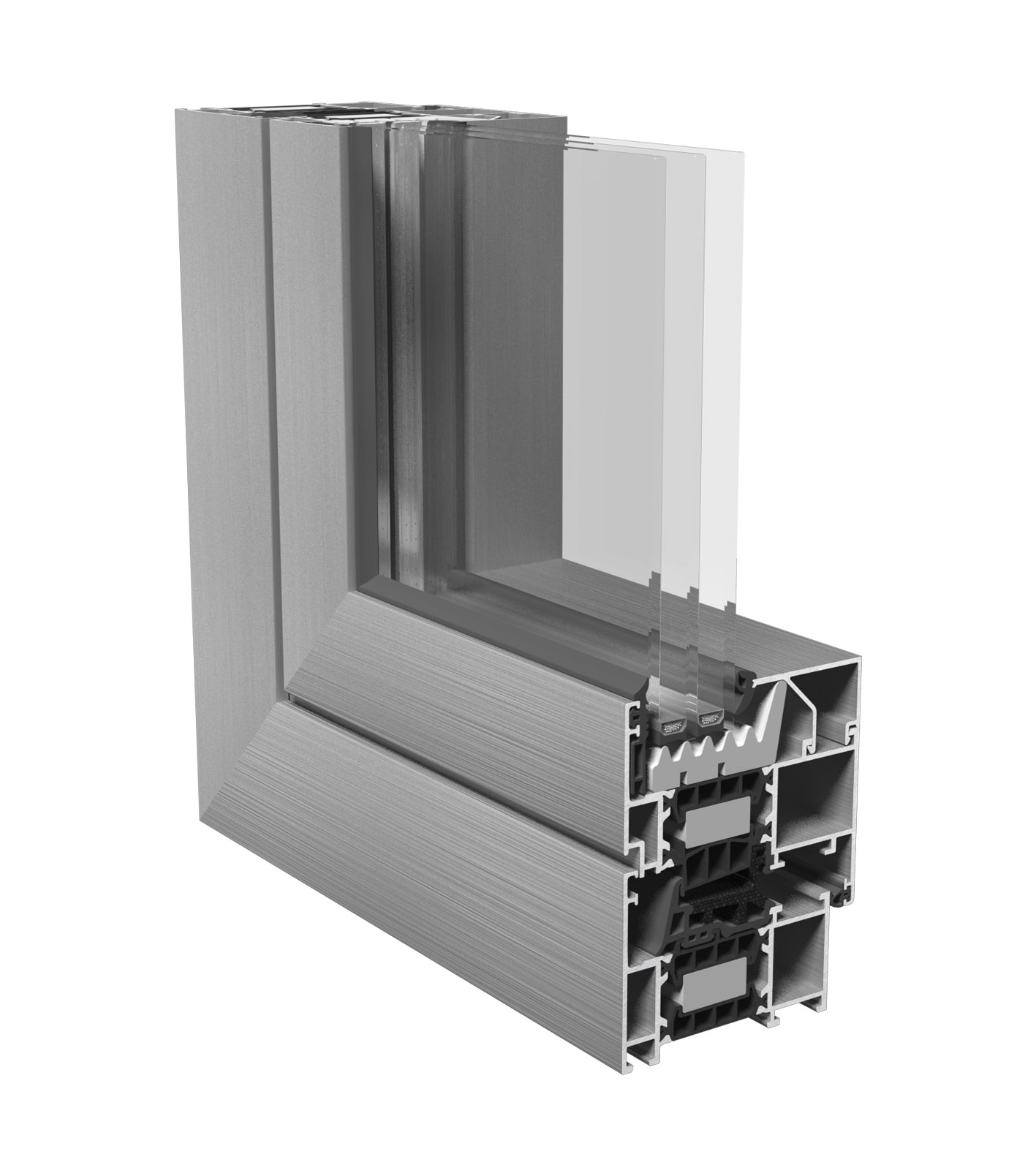

Sistem Tamplarie Aluminiu E75.

etem systems srl

Email
Telefon
Website
Cere Oferta

Descriere

E75 WINDOW IS A SYSTEM CORRESPONDING TO THE MOST STRINGENT REQUIREMENTS FOR THERMAL INSULATION, FUNCTIONALITY AND AESTHETICS.

Elegant straight design

75 mm system width allowing usage of triple glazing

Wide polyamide bars

Excellent thermal insulation from 1,1 W/m2.K

Additional insulator in the thermo-break area

Additional insulator under the glass

Effective drainage

Excellent water-tightness and air-permeability

Co-extruded central gasket

Possibility for mounting anti-burglar hardware for good security performance

Extruded corners for crimping machine with glue allowing greater connections

Cere Oferta

etem systems srl

Email
Telefon
Website
Cere Oferta

Specificatii

Denumire Valoare
Frame width: 75 mm
Glazing infill range: 13 ÷ 65m
