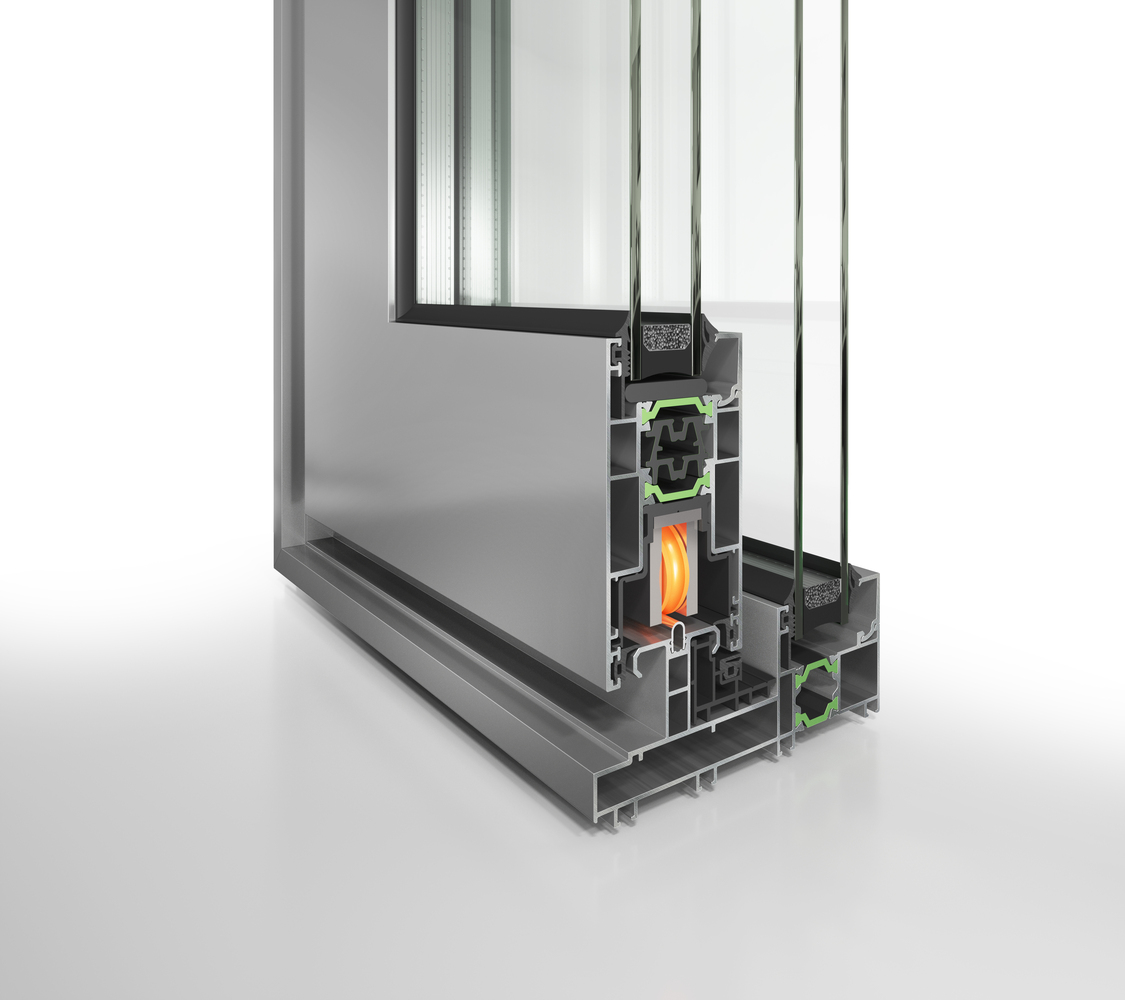

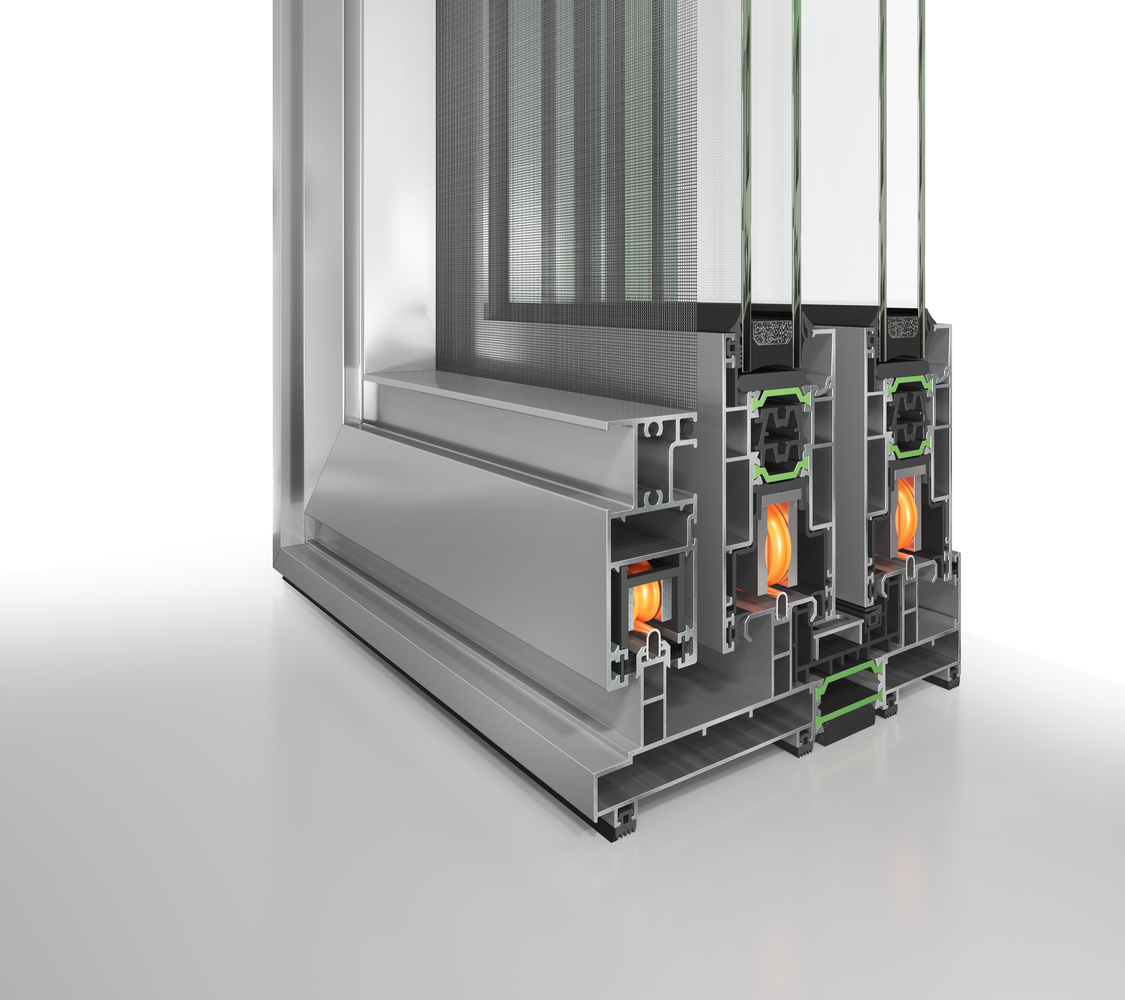

E50 IS A HIGH-END SLIDING WINDOW SYSTEM WITH THERMAL BREAK, SUITABLE FOR OPPOSED & POCKET BALCONY DOORS AND WINDOWS WITH HIGH REQUIREMENTS FOR THERMAL INSULATION, FUNCTIONALITY AND AESTHETICS.
Elegant straight design
Excellent water-tightness and air-permeability
High thermal insulation
Glazing sash with 50.0 mm width allowing glass panel from 6.0 mm up to 40.0 mm
Ability of excellent view, using narrow interlock profile 49 & 36 mm
Ability of construction single and double vent pocket doors and windows
Maximum sash weight 300 kg (for Lift & Slide mechanism) & 200 kg
(for Slide mechanism)
On demand: up to 400 kg - for Lift & Slide mechanism
| Denumire | Valoare |
|---|---|
| Sash width: | 50mm |
| Rail height: | 25mm / 45mm |
| Interlock width: | 36mm / 112mm |
| Glazing infill range: | 6 ÷ 40mm |
