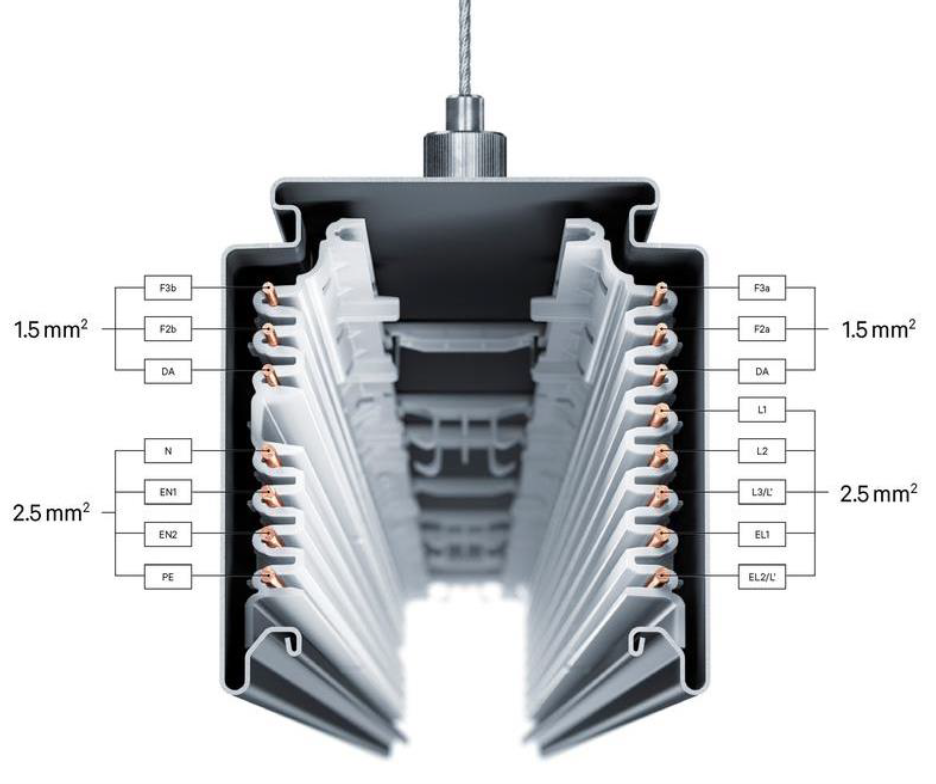

TECTON II takes continuous-row lighting to the next level. Zumtobel’s modular system stands out with intuitive design, fast tool-free installation and energy-efficient operation – offering maximum flexibility, sustainability and quality throughout the entire product lifecycle. Maximum light quality, reduced consumption: with a market-leading LED driver and precise lens technology, TECTON II delivers an energy-efficient 210 lumens per watt at up to 10,700 lumens per meter. 15 poles, two emergency lighting circuits and up to three customized circuits: whether it’s DALI, loudspeakers or customized solutions – it can be configured according to your requirements.
Features TECTON II Wide Beam continuous row luminaire:
- Energy-efficient LED continuous row luminaire with light efficiency of up to 211 lm/W
- Application focus: Presentation and Retail (shelf and surface lighting), industry and engineering (general and workplace lighting)
- For illuminating shelf surfaces and aisles, medium wide light distribution
- Lenses made of PMMA (shatter-resistant to IK06) achieve IP50 protection for LED and optic with all TECTON II luminaires
- double split lens concept for lowest perceived glare
- LED continuous row luminaire with 96 highly efficient mid-power LEDs per segment
- Product design matched to the mounting rail and metric length for easier planning
- LED continuous row luminaire made of roll-formed sheet steel in white or black polyester lacquer finish
- All-in-one solution: lighting batten, lamp and reflector are combined in one product and allow a 100 % continuous ribbon of LED light without gaps
- Colour rendering index: Ra > 80 (3000 K, 3500 K, 4000 K and 6500 K)
- Colour tolerance between several luminaires of max. 2 MacAdam ellipses
- Colour temperature: 3000 K (LED830: warm white), 3500 K (LED835: intermediate), 4000 K (LED840: intermediate), 6500 K (LED865: cool white)
- LED service life: up to L95 at 100,000 h
- Dimming level for DC mode preset to 15 %
- LED luminaire is Switch Dim-compatible
- 100% flexible, tool-free mechanical and electrical installation using CLIX-technology by means of two side-mounted rotary levers on the TECTON II trunking
- Ideal utilisation of LED driver at length of 2.5m enables highest system efficiency
- Phase selection for 3 phase circuits and 2 emergency lighting circuits
- No ultraviolet or infrared radiation
- Luminaire has halogen-free and silicon-free wiring
- It is recommended to avoid cool colour temperatures (> 5.300K) at high illuminance during night work, instead apply colour temperatures <4.100K
- Luminaire via myTECTON II with 3500 K, or as switchable version
